HERTZ DBA 201 F active sub woofer class D แบรนด์ดังฟากฝั่งอิตาลี มีความไฮ คลาส ขั้นสุด เหมาะสำหรับนักเล่นไฮคลาส กำลังขับสูงสุด 440watts  คุณลูกค้าทักแชท หรือ inbox เพื่อรับข้อเสนอพิเศษสุดนะครับ

HERTZ DBA201 F

High performance in a super flat design

Watch the product video

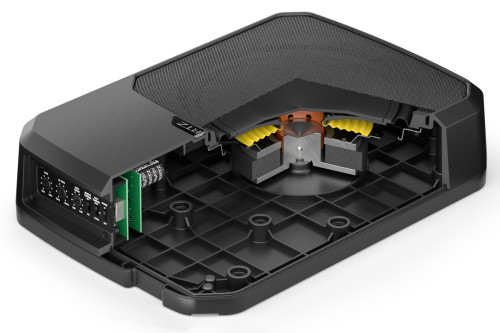

The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.

Extra full set of controls to fine-tune the in-car performance

The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

Auto turn-on and standby mode

The built-in audio sense circuit allows the DBA 201 F to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

DBA 201 F200 (8) mm (in.) | 440 W | 0.4 Ohm | Super Flat Sealed

Size mm (in.)	200 (8)
Power Handling - Continuous W	220
Power Handling - Peak W	440
Impedance Ohm	0.4
Design	Super Flat Sealed
Voice Coil Ø	38.6 (1.52) mm (in.)
Frequency Response Hz	32 ÷ 400
Magnet size D x d x h mm (in.)	110 x 45 x 17 (4.33 x 1.78 x 0.67)
Weight of one component kg (lb.)	4.3 (9.48)
Magnet	High Density Flux Ferrite
Cone	Pressed paper
Voice Coil Type	Copper

Operating voltage VDC (Fuse) 6.5 ÷ 18 (15A) Start - Stop voltage VDC 6 Idling current A (Power OFF) 260 m (1 m) Consumption @ 14,4 VDC Max musical power A 8.5 Remote IN Turn on VDC (Current) 4 (1 mA) PRE input signal Turn ON VRMS 10 mV SPK input DC Turn ON VDC 2
